1P 25kA Low voltage AC Power Lightning Protection type 1 SPD Surge Suppressor |
<Lightning Surge Arrester/Surge Protective Device/Surge Arrester>
type 1 SPD Features
type 1 SPD Technology characteristic
type 1 SPD Product characteristics
Specification |

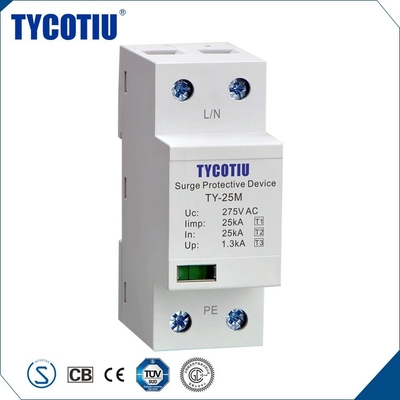

TY-25M 1P |
Item name |
Surge Arrester |
SPD dassification according to EN61643-11 |
Type 1 |
Max continuous 0perating a.c. voltage Uc |
275V |
Lightning impulse current (10/350µs) limp |
25kA |
Norminal discharge current (8/20µs) In |
25kA |
Voltage protection level Up |
≤1.3kV |
Voltage protection level 5kA Up |
≤1.1kV |
Max. backup fuse |
315A gG |
Response time tA |
≤25ns |
For mounting on |
35mm Din rail |
Degree of protection |
IP20 |
Payment term |
30% deposit in advance,70% before shipment |
Certificate |
CE/ROHS/ISO9001 |
Logo |
Customized logo available |
Design ability |
We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |
Remote signaling |
250V 0.5A |
We can produce according to your requirements.
Contact us get the lowest price
TYCOTIU owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. TYCOTIU team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.
Zhejiang Tycotiu Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences. We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.
TYCOTIU have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.
TYCOTIU offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.
TYCOTIU have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.
Over 17 years' OEM experience,we can provide professional solutions for customers. Click "Send "get the Latest quotation Now!!
